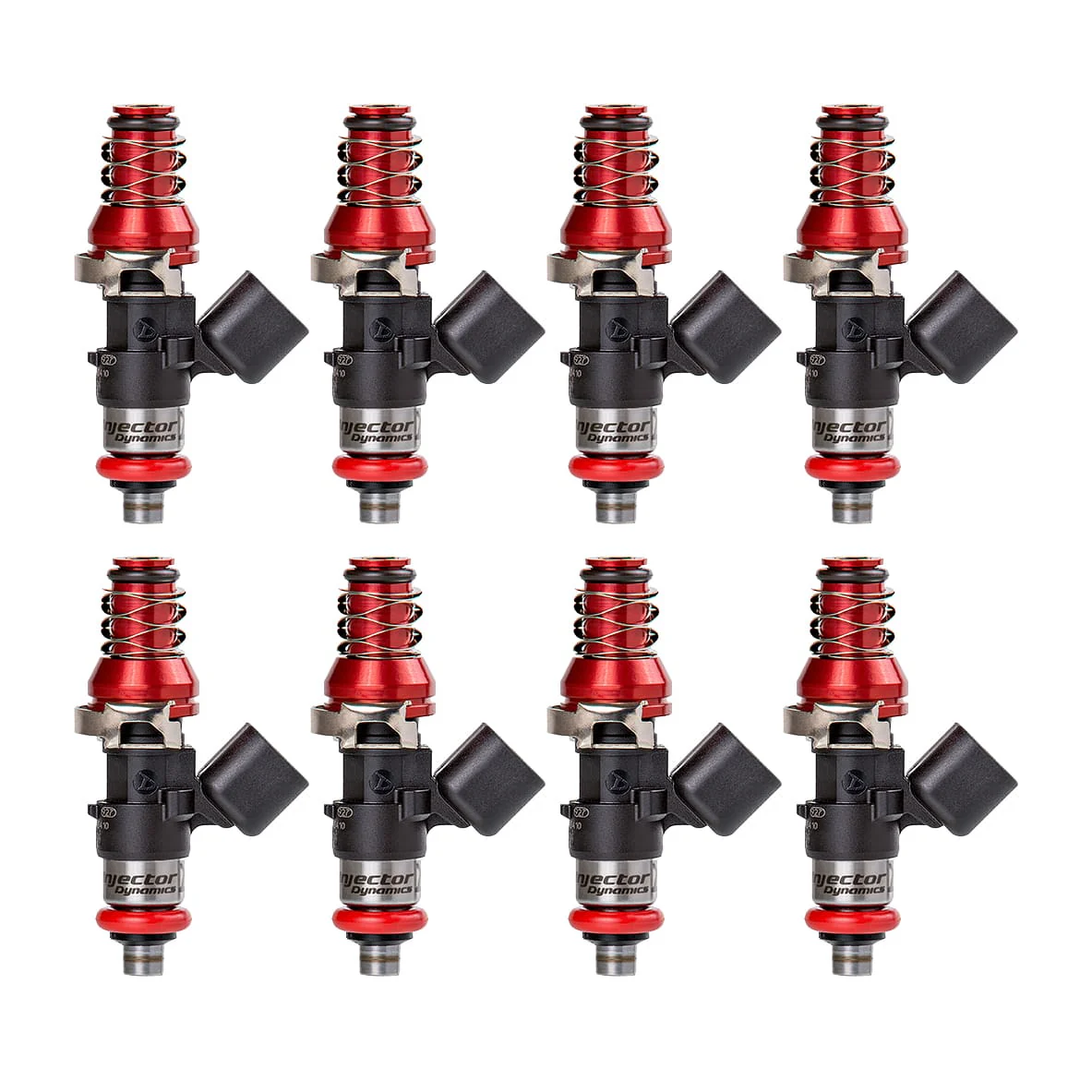

Injector Dynamics 1750-XDS - 60mm Length - 14mm Grey Top - Silver Bottom Adapt (Set of 8)

Product image 1

Injector Dynamics 1750-XDS - 60mm Length - 14mm Grey Top - Silver Bottom Adapt (Set of 8)

The Best Just Got Better!

The ID1750 is the successor to the ID1700, featuring numerous improvements.

Compared to the 1700, the 1750 offers:

  • Higher Dynamic Flow Rate With no Increase in Minimum Fuel Mass.
  • Better Cylinder to Cylinder Balance at Low Pulsewidths.
  • Improved Pressure Sensitivity.

All while retaining the same “Compatible with everything but dirt” corrosion resistance that made the ID1700 famous.

Basic Specifications

  • Nominal Flow Rate – 1728cc/min @ 3.0 Bar (43.5 psi), Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
  • Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
  • Fuel Compatibility – Compatible with Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels.
  • Electrical Connector – USCAR

ID1750-XDS Dynamic Flow Data

Fuel Pressure
(psid)		 Offset
(µsec)		 Slope
(cc/min)
8 Volts 10 Volts 12 Volts 14 Volts 16 Volts
43.5 2635 1641 1169 882 689 1728
45.0 2679 1660 1180 889 695 1759
50.0 2834 1726 1222 918 714 1858
55.0 3004 1798 1268 951 737 1953
60.0 3194 1873 1316 987 766 2044
65.0 3404 1952 1367 1027 804 2131
70.0 N/A 2036 1420 1069 844 2216
75.0 N/A 2122 1472 1109 878 2296
80.0 N/A 2211 1524 1148 908 2373
85.0 N/A 2304 1577 1187 936 2446
90.0 N/A 2400 1634 1228 968 2515
95.0 N/A 2499 1694 1270 1000 2582
100.0 N/A 2601 1757 1314 1034 2645

Plug n’ Play Data

Are you tired of pouring over logs, making corresponding changes to your tune, only to find that what worked one day is off by the next? Have you wasted hours sifting through a myriad of injector related posts on the forums, only to find that there is no simple solution? Such is the nature of tuning with inaccurate injector data.

Accurate injector characterizations are the basis of all fueling calculations, so it’s no wonder that if you’re tuning without it, you will spend a lot of valuable time making the best of a bad situation. Not only will it keep you busy searching for endless combinations of mostly incorrect answers, it will rob you of one of the most basic functions provided by the guys who spent millions of R&D dollars designing the engine management system for your car.

Injector Dynamics is the only motorsport injector supplier capable of generating these OEM quality injector characterizations, and our engineering services are available to generate data for new platforms and applications at no cost to our customers.

We welcome the opportunity to provide solutions where none previously existed, and it is this commitment to value and innovation that has earned us our position as the industry leader.

Remember that next time you hear “The Same as Injector Dynamics but Cheaper”


$954.03

Original: $2,725.80

-65%
Injector Dynamics 1750-XDS - 60mm Length - 14mm Grey Top - Silver Bottom Adapt (Set of 8)—

$2,725.80

$954.03

Product Information

Shipping & Returns

Description

The Best Just Got Better!

The ID1750 is the successor to the ID1700, featuring numerous improvements.

Compared to the 1700, the 1750 offers:

  • Higher Dynamic Flow Rate With no Increase in Minimum Fuel Mass.
  • Better Cylinder to Cylinder Balance at Low Pulsewidths.
  • Improved Pressure Sensitivity.

All while retaining the same “Compatible with everything but dirt” corrosion resistance that made the ID1700 famous.

Basic Specifications

  • Nominal Flow Rate – 1728cc/min @ 3.0 Bar (43.5 psi), Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
  • Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
  • Fuel Compatibility – Compatible with Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels.
  • Electrical Connector – USCAR

ID1750-XDS Dynamic Flow Data

Fuel Pressure
(psid)		 Offset
(µsec)		 Slope
(cc/min)
8 Volts 10 Volts 12 Volts 14 Volts 16 Volts
43.5 2635 1641 1169 882 689 1728
45.0 2679 1660 1180 889 695 1759
50.0 2834 1726 1222 918 714 1858
55.0 3004 1798 1268 951 737 1953
60.0 3194 1873 1316 987 766 2044
65.0 3404 1952 1367 1027 804 2131
70.0 N/A 2036 1420 1069 844 2216
75.0 N/A 2122 1472 1109 878 2296
80.0 N/A 2211 1524 1148 908 2373
85.0 N/A 2304 1577 1187 936 2446
90.0 N/A 2400 1634 1228 968 2515
95.0 N/A 2499 1694 1270 1000 2582
100.0 N/A 2601 1757 1314 1034 2645

Plug n’ Play Data

Are you tired of pouring over logs, making corresponding changes to your tune, only to find that what worked one day is off by the next? Have you wasted hours sifting through a myriad of injector related posts on the forums, only to find that there is no simple solution? Such is the nature of tuning with inaccurate injector data.

Accurate injector characterizations are the basis of all fueling calculations, so it’s no wonder that if you’re tuning without it, you will spend a lot of valuable time making the best of a bad situation. Not only will it keep you busy searching for endless combinations of mostly incorrect answers, it will rob you of one of the most basic functions provided by the guys who spent millions of R&D dollars designing the engine management system for your car.

Injector Dynamics is the only motorsport injector supplier capable of generating these OEM quality injector characterizations, and our engineering services are available to generate data for new platforms and applications at no cost to our customers.

We welcome the opportunity to provide solutions where none previously existed, and it is this commitment to value and innovation that has earned us our position as the industry leader.

Remember that next time you hear “The Same as Injector Dynamics but Cheaper”
